Explosion Proof Power Alarm® Programmable Multi-Sound Signal



POWER ALARM® PROGRAMMABLE MULTI-SOUND INDUSTRIAL SIGNALS

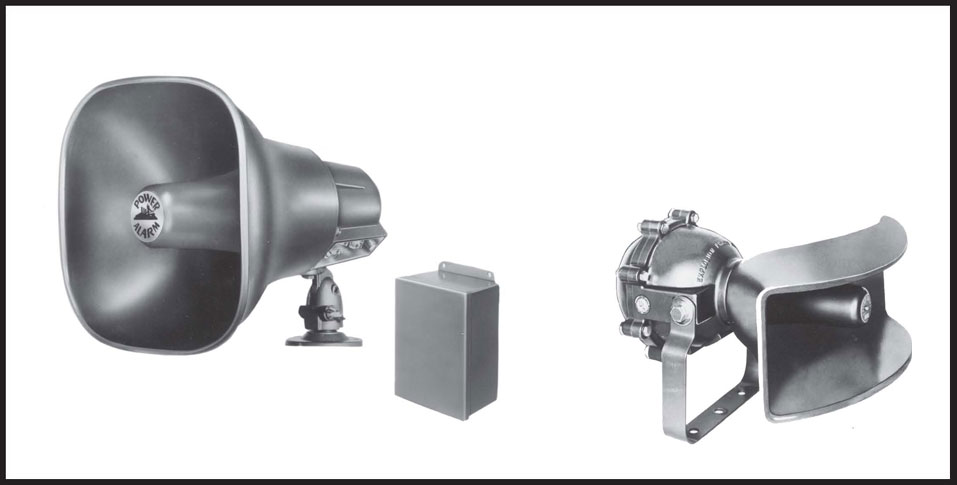

The POWER ALARM® siren is a heavy duty industrial audible alarm designed to operate under adverse industrial conditions such as shock, vibration, or transient voltage surges. The models 1000 and 1100 POWER ALARMS are supplied with a plug-in single channel programmable sound module that generates 8 different rotary switch selectable sounds plus 4 additional sounds that can be selected remotely by customer switch. Remote feature requires RJ45-6 remote control cable. See chart below for details.

  • 120 db at 4 ft.
  • NEMA 4 circuitry enclosure.
  • 100% all metal speaker, weatherproof construction.
  • Speaker and plug-in programmable sound module included.
  • -55 to + 60 degree C temperature range.
  • 8″ tall X 6″ wide X 3″ D enclosure
  • 10 1/2″ L X 19 1/2″ tall X 10″ W speaker, 15 lbs. Total.
Model NumberVoltage/Amps
1000-120 120/240 AC, .5/.25
1100-12/24 12/24 DC, 3.15
1100-250   250 DC, 0.25

PARTS & ACCESSORIES (“/” factory installed options)
MULTISOUND Multi-Sound plug-in module
1001 Speaker
1000-PCB 120 VAC printed circuit board
1100-PCB 250 VDC printed circuit board
1100-PCB-12/24 12/24 VDC printed circuit board
/SSA NEMA 4 stainless steel enclosure
RJ45-6 Remote Control Cable

EXPLOSION PROOF POWER ALARM® PROGRAMMABLE MULTI-SOUND SIGNAL

The single sound channel EXPLOSION PROOF POWER ALARM® is a solid state audible device with a hard wired single channel programmable sound module that generates 8 different rotary switch selectable sounds plus 4 additional sounds that can be selected remotely by customer switch. Remote feature requires RJ45-6 remote control cable. See chart below for details.

UL listed for Class I, Groups C & D. Class I, Div. 2, Groups A, B,. C & D. Class II, Div. 2, Groups F & G. Gasketed for outdoor application.

Features include:

  • 117 db at 4 ft, 109 db at 10 ft.
  • 120 X 60 degree sound dispersion.
  • Weatherproof construction, fiberglas horn & cast aluminum housing
  • -55 to + 85 degree C temperature range
  • NEMA 4 Marine rating.
  • 14″W X 6″Tall X 17 1/2″L, 24 lbs.
Model NumberVoltage/Amps
1002WEP-120120 VAC, 0.2
1002WEP-240240 VAC, 0.1
1002WEP-2424 VDC, 0.8
1001-WEP  EP Speaker w/o circuitry
RJ45-6Remote Control Cable
Multisound Siren Module Standard Rotary Switch Single Tone Selection Chart RJ45-6 Remote Control Cable Selections
Switch Selection Operation Remote Control Operation Priority
0 Selects Remote Control Operation Orange Wire Horn – Steady 1
1 8 Tone Parade Sequence Black Wire Two-Tone – Alternating 2
2 Yelp – Rapid Siren Red Wire Yelp – Rapid Siren 3
3 Two-Tone – Alternating Gray Wire Wail – Conventional Siren 4
4 Whoop – Ascending Low-High
5 Yeow – Descending High-Low
6 Horn – Steady
7 Beep – Slow Intermittent Horn
8 Stutter – Rapid Intermittent Horn
